Ceiling concealed duct fan coil unit-510CFM ( 4 tubes)

Product Categories

Ningbo Dekon Refrigeration Equipment Co., Ltd

Contact Now

Place of Origin : CHINA

Brand Name : DEKON

Certification : CE

Model Number : FP-51WA-4

MOQ : 100PCS

Contact Now

Ceiling concealed duct fan coil unit-510CFM ( 4 tubes)

model(4 tube system)				FP-34WA-4	FP-51WA-4	FP-68WA-4	FP-85WA-4
power supply				220V,50Hz,1Ph
air volume		H	m³/h	340	510	680	850
		M		270	380	515	660
		L		190	260	340	430
static pressure			Pa	12(30)	12(30)	12(30)	12(30)
cooling capacity	TH	H	W	1800	2700	3600	4500
	TH		BTU/h	6142	9212	12283	15354
	SH		W	1341	2012	2682	3353
	SH		BTU/h	4575	6865	9151	11440
	TH	M	W	1458	2187	2916	3645
	TH	M	W	1152	1728	2304	2880
	SH	L	W	1134	1701	2268	2835
	SH	L	W	930	1395	1860	2325
heating capacity	H		W	1300	1940	2590	3240
	M		W	1020	1530	2040	2550
	L		W	820	1230	1630	2040
noise	high speed	12Pa	dB(A)	35	36	38	40
noise		30Pa	dB(A)	39	41	43	45
power input		12Pa	W	34	41	59	73
power input		30Pa	W	41	54	65	82
waterflow volume		cool	m³/h	0.31	0.46	0.62	0.77
waterflow volume		heat		0.11	0.17	0.22	0.28
water pressure dropping		cool	kPa	7	15	18	23
water pressure dropping		heat		2.8	6	7.2	9.2
dimension of water(in & out)connection pipe				ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"
dimension of water(in & out)connection pipe				ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"
dimension of water drain pipe			mm	ZG3/4"
dimension	L×W×H		mm	700458230	810458230	930458230	990458230
weight			kg	17	19	20	23

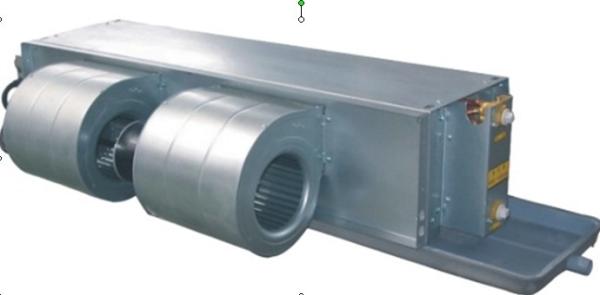

Ceiling concealed duct fan coil unit-510CFM ( 4 tubes) Images
